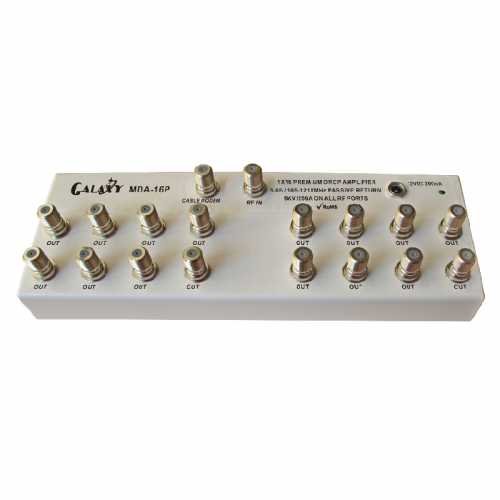

MDA-16P 1x16 Premium Drop Amplifier 5-1002MHz
- Product Code:Indoor Amplifier
- Availability:In Stock
-
$159.00
SPECIFICATION
|
Part No.
|
MDA-16P |
|
Forward Path Frequency Range |
52 - 1002 MHz |
|
Gain (loss) |
0 dB |
|
Flatness |
+/- 1.5 dB |
|
Return
Loss (input) |
22.0 dB |
|
Return
Loss (CM input) |
22.0 dB |
|
Return
Loss (output) |
20.0 dB |
|
Port
Isolation (output) |
20.0 dB |
|
Port
Isolation (CM port to output port) |
20.0 dB |
|
Group
Delay 54-60MHz |
15 ns |
|
61-1000MHz |
7 ns |
|
|
|
|
Return Path Frequency Range |
5 - 42 MHz |
|
Gain (loss) |
-14.5
dB |
|
Flatness |
+/- 2.0 dB |
|
Return
Loss (input) |
21.0 dB |
|
Return
Loss (output) |
21.0 dB |
|
Port
Isolation (output) |
25.0 dB |
|
Group
Delay 5-42 MHz |
17 ns |
|
10-40 MHz |
7 ns |
|
|
|
|
Power
to RF Input Isolation 5-1000 MHz |
100 dB (min.) |
|
RFI
Isolation 5-1000 MHz |
-110 dB |
|
Noise
Figure 52-1000 MHz |
3.0 dB |
|
CSO
Distortions |
-65 dBc |
|
CTB
Distortions |
-74 dBc |
|
XMOD
Distortions |
-75 dBc |
