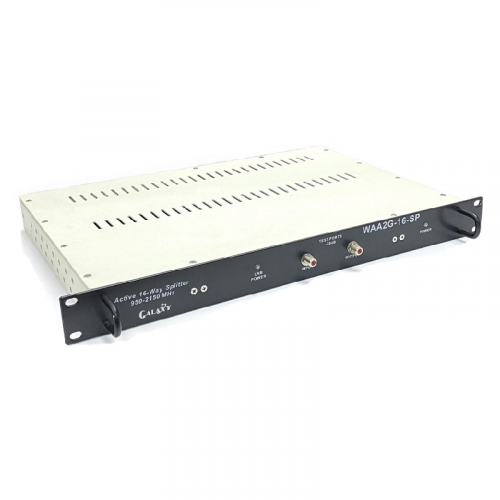

• WAA2G-16-SP 16way L-Band Active Splitter


    • Product Code: Splitter
    • Availability: 2-3 Days

    • $200.00



    This product has a minimum quantity of 5

      Specifications

    Model

    WAA2G-16-SP

    Frequency Range

    950-2150 MHz

    Input/Output impedance

    75 Ohm

    Insertion loss

    0.0 +/- 0.50 dB

    Flatness

    +/- 0.75 dB max

    Flatness in any 36 MHz spacing

    +/- 0.25 dB max

    Input Return loss

    16 dB min

    Output Return loss

    -20 dB min

    Input test ports

    -20 +/- 1.2 dB

    Out test ports

    -20 +/- 1.5 dB

    Isolation between output

    21 dB min

    Noise figure

    8.0 dB max

    Input signal level

    -10.0 dBm max

    Intermodulation distortion @-10dBm

    -40.0 dBc max

    Damage input signal level

    20 dBm

    LBN DC power

    18V

    Max current to LNB

    500 mA

    Power supply: main

    Universal 90-240VAC, 40-60Hz

    Optional

    -48VDC

    Power consumption

    3.0W

    Dimensions

    19 x 14 x 3.5 inch

    Weight

    6.3 lb
