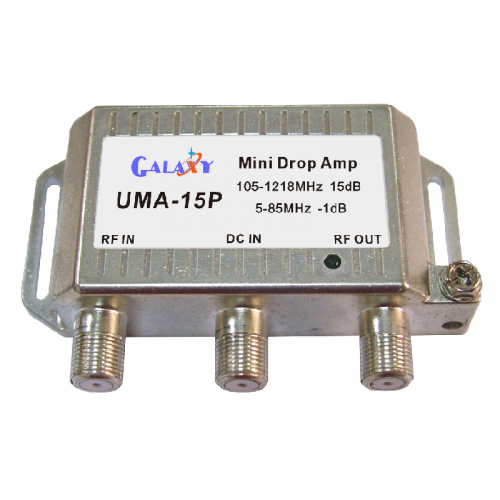

• UMA-15P Mini Drop Amplifier 5-1218MHz


    • Product Code:Indoor Amplifier
    • Availability:In Stock

    • $26.00



    This product has a minimum quantity of 5

    SPECIFICATION

    Part No.

    UMA-15P

    Forward Path Frequency Range

    105 - 1218 MHz

    Amplification Device

    RF Amplification IC - GaAs HBT

    Gain (typical)

    15.0 dB

    Gain Tolerance

    +1/-1 dB

    Flatness (peak-to-vallty)

    1 dB

    Rated Output Level

    25.0 dBmV

    Return Loss

    18 dB

    Isolation

    -

    Group Delay  54-60MHz

    < 20/3.58 MHz

                60-66MHz

    < 10/3.58 MHz

    66-100MHz

    < 5/3.58 MHz

    Noise Figure

    3.0 dB

    CSO Distortions

    < -62 dBc

    CTB Distortions

    <-79 dBc

    XMOD Distortions

    <-75 dBc

    Hum Modulations

    <-75 dBc





    Return Path Frequency Range

    5 - 85 MHz

    Gain (typical)

    Active (+10 dB)

    Flatness (peak-to-vallty)

    1 dB

    Return Loss

    18 dB

    Isolation (5 to 42 MHz)

    -

    Group Delay  5-10MHz

    < 20/1 MHz

                10-36MHz

    < 5/1 MHz

    36-42MHz

    < 20/1 MHz

    Hum Modulations

    <-75 dBc

    Rated Output Level

    55 @ 2 Channels dBmV





    RFI Shielding

    > 110 dB

    Nominal Impedance

    75 ohms

    Surge Withstand Capability (all RF ports)

    IEEE C 62.41

    Operating Temperature

    -40 to +60

    F-ports

    Confirms to ANSI/SCTE 01 2006; Sealed; Able to hold 15 psi

    Power Requirements

    12VDC, 300mA
